Mechanical Clamshell Crane Grabs Two Rope 4 CBM Wear Resistant

Name: Mechanical Clamshell Crane Grabs Two Rope 4 CBM Wear Resistant
Brand: OUCO
Price: 1 USD

Wholesale Mechanical Clamshell Crane Grabs Two Rope 4 CBM Wear Resistant from china suppliers

Brand Name : OUCO

Model Number : OUCO-MGB-4CBM-00

Certification : CE, ISO

Place of Origin : Jiangsu, China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, , T/T, Western Union, MoneyGram

Supply Ability : 50 sets per yaer

Delivery Time : 60 days

Packaging Details : Shipping Container/Wood Crate/nude

Product : Two-Rope Mechanical Clamshell Crane Grabs, 4 CBM Wear Resistant Grab

Material : Hardox 400/NM 450

Type : Clamshell Grab

Condition : New

After-sales service provided : Engineers available to service machinery overseas, commissioning and training, Online support, Overseas service center available

Warranty : 1 Year

Color : Support customization

Shipping : Chartered, bulk shipping

Contact Now

Two-Rope Mechanical Clamshell Crane Grabs, 4 CBM Wear Resistant Grab

Product Description

Two-rope mechanical clamshell grabs are the best grabbing equipment for bulk materials such as sand, stones and dry sea salt.
It does not require additional power and wires, the opening and closing of the grab through the wire rope group.

The edge plate of the grab bucket is made of Hardox wear-resistant steel, with heavy-duty bearings and sealed oil cylinders. While the grab bucket has high performance, it also provides good protection ability and is more durable.

The kick plate can be used with the grab to control the capacity of each grab.
You can choose different grabbing capacities according to the different densities of grabbing materials, and match the safety load of the crane, which makes your work easy and simple.

A sealed enclosure can effectively reduce your dust contamination.

Specifications

SWL (t)			6.3	8	10	12.5	16	20	25
Dead weight (Kg)	4 times		2300	2800	3440	4500	5600	7360	8800
Dead weight (Kg)	5 times rate		2460	2880	3600	4660	5760	7520	9000
Capacity (m3)	4 times		2.5	3.2	4	5	6.5	7.9	10.1
Capacity (m3)	5 times rate		2.4	3.2	4	4.9	6.4	7.8	10
Pulley	diameter mm		355	400	450	500	560	630	630
Wire Rope	diameter mm		18	20	22	24	26	28	32
	length	4 times	11.5	12.8	13.8	15	16.5	17.8	18.6
	m	5 times	14	15.5	16.8	18.5	20.5	21.8	23
	stroke	4 times	5940	6600	7100	7680	8520	8920	9760
	mm	5 times	7425	8250	8875	9600	10650	11150	12200
Dimension(mm)	A		3080	3430	3700	4010	4380	4770	4990
	B		2600	2900	3100	3350	3640	4020	4120
	C		2220	2410	2610	2850	3070	3270	3530
	D		2540	2760	2950	3160	3450	3680	3910
	E		1800	1930	2070	2220	2420	2580	2730

GA Drawing

Mechanical Clamshell Crane Grabs Two Rope 4 CBM Wear Resistant

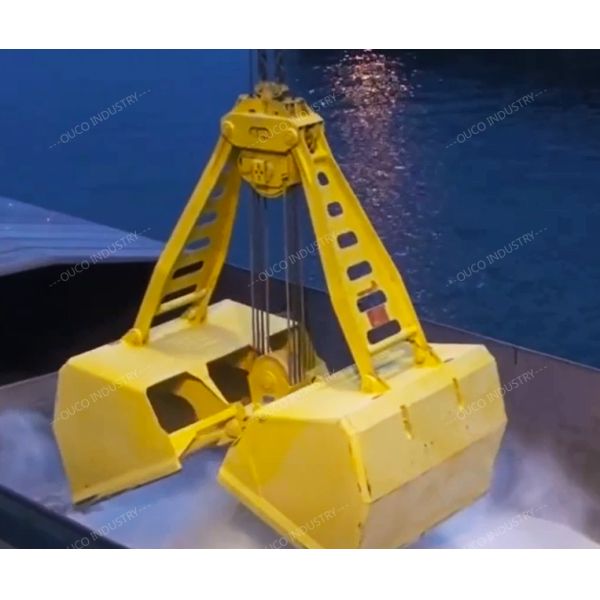

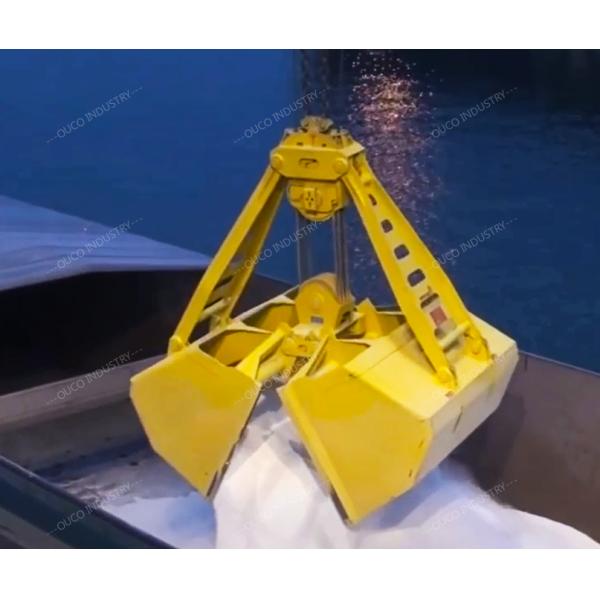

Product Picture

Mechanical Clamshell Crane Grabs Two Rope 4 CBM Wear Resistant
